Ini adalah Controller cerdas yang memiliki teknologi MPPT. Solar charge controller salah satu bagian penting dalam tenaga surya. Untuk memiliki teknologi canggih MPPT, controller dapat melacak daya puncak dengan efisiensi konversi 99%. MPPT mikroprosesor, dalam controller,
Application: Solar System Controller

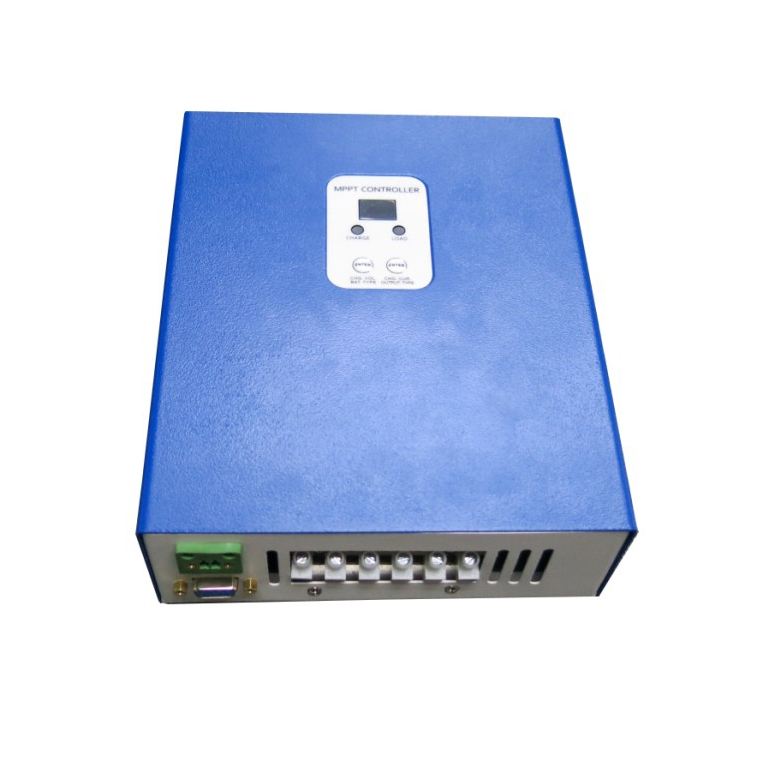

nomor Model: e-Smart20A
Charge Mode: MPPT
Communication way: RS232
Max PV Power: 284W or 568W or 1136W
Max. DC Voltage: 100VDC
System Voltage: 12V 24V 48V automatic recogntion
PV Modules Utilization Rate: 99%
Rated Output Current: 20A
Output ripples: 200mV
Certificates: CE, RoHS
Selectable Battery Types (Default type is GEL battery Sealed lead acid, Vented, Gel, NiCd battery (Other types of the batteries also can be defined.)
Constant Voltage Please check the charge voltage according to the battery type form.
Rated Input Current 20A
Current-limiting Protection 25A
Temperature Factor 0.02%/C
Temperature Compensation 14.2V-(The highest temperature -25C)*0.3
Output Ripples (Peak) 200mV
Output Voltage Stability Precision OUTPUT:
Output voltage Base on battery voltage
Low voltage output protection point Default 10.5V; recovery 11V; custom available;
Rated Ouput current 30A
Output Control Set Mode Controller button or upper computer
Display
LED Digital Tube Display Battery voltage, charge current
LED Light Display Charging indicator light, Load indicator light
PC (communication port) RS232
Physical
Measurement DxWxH (mm) 205x168x60
Package Size DxWxH (mm) 265x196x110
Net Weight (kg) 1.8
Gross Weight (kg) 2
Type of Mechanical Protection IP25
Harga
Rp. 2.155.000,-
( Harga Belum Termasuk Ongkos Kirim )
=====================================================
